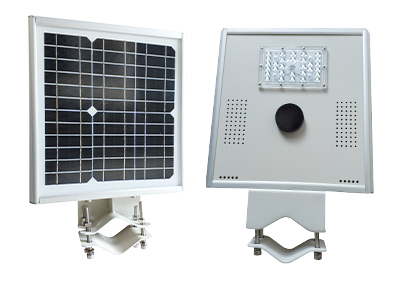

5W Integrated Led Solar Street Light

Products & Solutions > ALL IN ONE SOLAR STREET LIGHT >

5W Integrated Led Solar Street Light

*Type: Solar
*Power: 5W
*Light Source: PHILIPS 3030 195lm/W
*Lumen: 500lm-600lm
*Color temperature: 5000K （full color temp. range 2700~6500K available)
*Light Body Material: Aluminum Alloy

Detail >

FEATURES & ADVANTAGES

600 LM max lamp lumen high brightness
100,000+ Hours long LED lifespan, with professional heat dissipation design
25 Years long product lifespan
3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies
99.9% MPPT solar charge efficiency
IP68 rated controller vs. IP66 rated electrical compartment
5+ Days cloudy/rainy days autonomy
IES Type 1~5 with professional optical designs available to match different project requirements

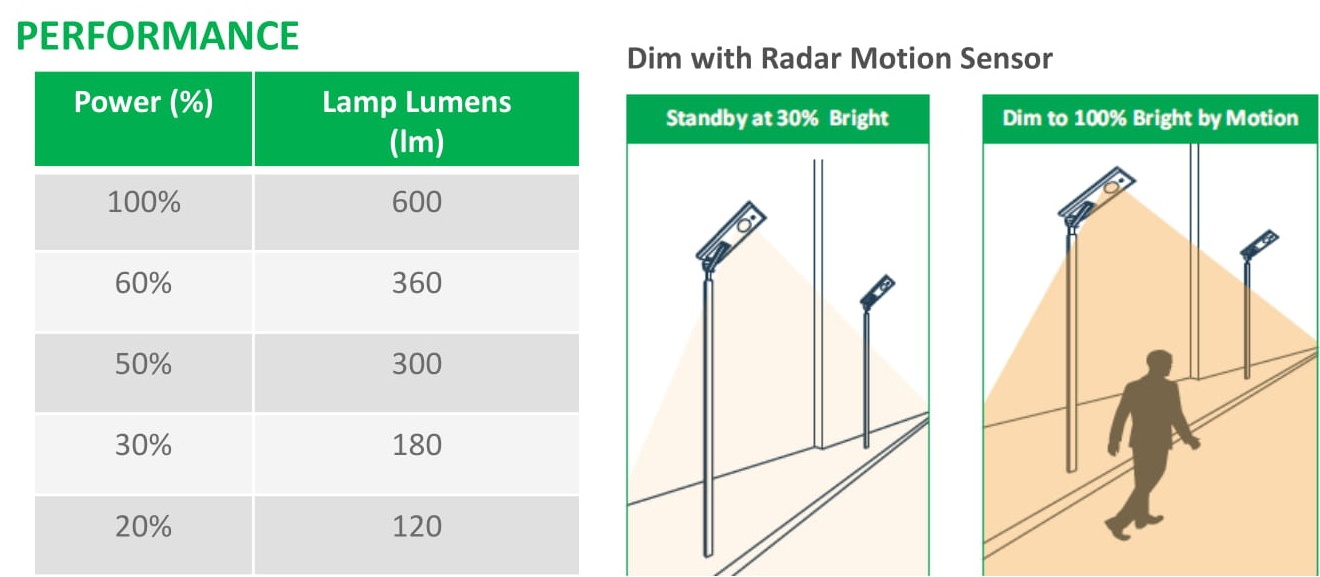

Flexible & Customized Working Modes with timer annd motion sensor by programming

TECHNICAL SPECIFICATIONS

SUPERIOR (SILVER) Series		MODEL NO. ISSL-SPR-005C
LED Light Source	Rated Power	12V/5W (30LEDsx1 Module)
	LED Brand	PHILIPS 3030 (LED Lumen: 195lm/W)
	Lumens(LM)	500-600lm
	Life-span	100,000 hours
	Viewing Angle	120°
Solar Panel	Power	18V/10Wp (Monocrystalline PV, Cell Efficiecny>)
	Life-span	25 years
Batteries	Capacity/Type	12.8V/6AH (76.80WH) / LiFePO4 Lithium
	Life-span	8+ years (3,000 circles @ 60% DoD)
Controller	Type	MPPT / Waterproof class: IP68
	Sensor	Microwave Radar (PIR & Timing as optional)
Full Charge Time	By Solar	7 hours (STC: 1000W/㎡, 25℃ )
Discharge Time	Dim Mode	>135 hours
	Bright Mode	>27 hours
Working Temp.	-30℃~+80℃
Color Temp.	Daylight White 5000K （full color temp. range 2700~6500K available)
Mounting Height/Brackets	3 m/ Clamp Bracket
Space Between Lights	8～10m
Materials	aluminium alloy
Certificate	CE / ROHS / IP66/TUV-SUD ISO9001/ ISO14001
Warranty	3 OR 5 years

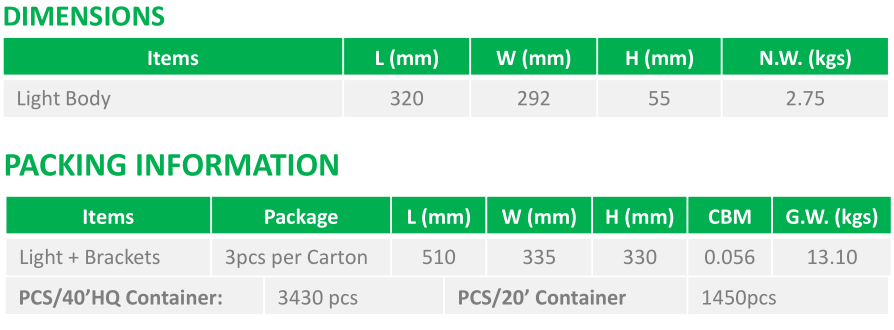

Packing & Weight	Light Body Size:	32029055mm
	Net Weight	2.8kg
	Carton Type	Customary Carton/ OEM Acceptable
	Carton size	510335330mm
	Qty/ctn	3pcs per Carton
	GW. per Carton	13.1 kg
PCS per Container	20' GP	1450
	40' HQ	3430
