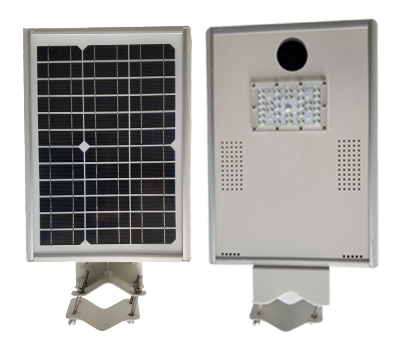

10W Integrated Led Solar Street Light

*Type: Solar
*Power: 10W
*Light Source: PHILIPS 3030 195lm/W
*Lumen: 1000lm-1200lm
*Color temperature: 5000K （full color temp. range 2700~6500K available)
*Light Body Material: Aluminum Alloy

Detail >

FEATURES & ADVANTAGES


  • 1,200 LM max lamp lumen high brightness
  • 100,000+ Hours long LED lifespan, with professional heat dissipation design
  • 25 Years long product lifespan
  • 3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies
  • 99.9% MPPT solar charge efficiency
  • IP68 rated controller vs. IP66 rated electrical compartment
  • 5+ Days cloudy/rainy days autonomy
  • IES Type 1~5 with professional optical designs available to match different project requirements
  • Flexible & Customized Working Modes with timer annd motion sensor by programming


TECHNICAL SPECIFICATIONS

SUPERIOR (SILVER) Series MODEL NO. ISSL-SPR-010C
LED Light Source Rated Power 12V/10W (30LEDsx1 Module)
LED Brand PHILIPS 3030 (LED Lumen: 195lm/W)
Lumens(LM) 1000-1200lm
Life-span 100,000 hours
Viewing Angle 120°
Solar Panel Power 18V/15Wp （Monocrystalline PV）
Life-span 25 years
Batteries Capacity/Type 12.8V/6AH (76.80WH) / LiFePO4 Lithium
Life-span 8+ years (3,000 circles @ 60% DoD)
Controller Type MPPT / Waterproof class: IP68
Sensor Microwave Radar (PIR & Timing as optional)
Full Charge Time By Solar 5 hours (STC: 1000W/㎡, 25℃ )
Discharge Time Dim Mode >65 hours
Bright Mode >13 hours
Working Temp. -30℃~+80℃
Color Temp. Daylight White 5000K （full color temp. range 2700~6500K available)
Mounting Height/Brackets 3～4 m/ Clamp Bracket
Space Between Lights 8～10m
Materials aluminium alloy
Certificate CE / ROHS / IP66/TUV-SUD ISO9001/ ISO14001
Warranty 3 OR 5 years

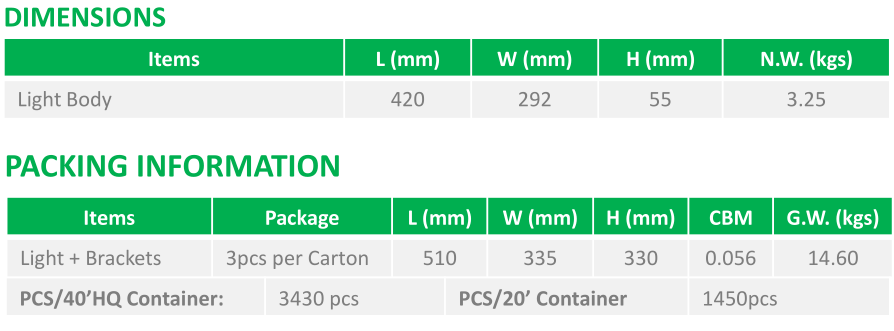

Packing & Weight Light Body Size: 420*290*55mm
Net Weight 3.3kg
Carton Type Customary Carton/ OEM Acceptable
Carton size 510*335*330mm
Qty/ctn 3pcs per Carton
GW. per Carton 14.6 kg
PCS per Container 20' GP 1450
40' HQ 3430
