40W Integrated Solar Street Light

*Type: Solar
*Power: 40W
*Light Source: PHILIPS 3030 195lm/W
*Lumen: 4800lm-5600lm
*Color temperature: 5000K （full color temp. range 2700~6500K available)
*Light Body Material: Aluminum Alloy

Detail >

FEATURES & ADVANTAGES

• 5,600 LM max lamp lumen high brightness

• 100,000+ Hours long LED lifespan, with professional heat dissipation design

• 25 Years long product lifespan

• 3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies

• 22.5% Efficiency SUNPOWER solar cells

• 99.9% MPPT solar charge efficiency

• IP68 rated controller vs. IP66 rated electrical compartment

• 7+ Days cloudy/rainy days autonomy

• IES Type 1~5 with professional optical designs available to match different project requirements

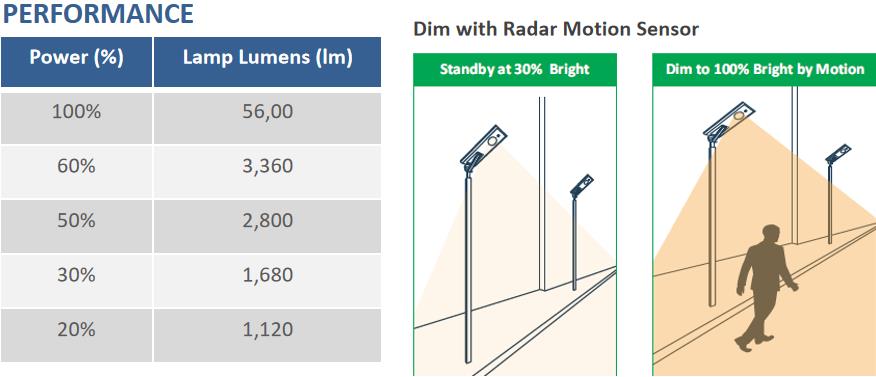

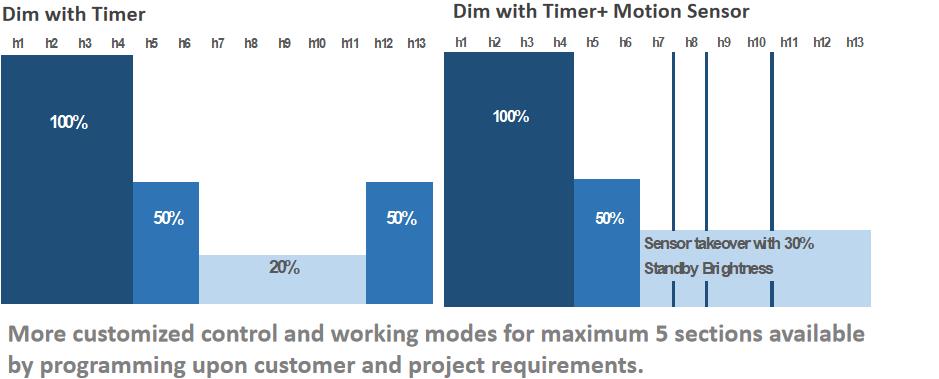

• Flexible & Customized Working Modes with timer and motion sensor by programming

• IoT Control and online remote monitoring as optional via ZigBee or LoRaWAN

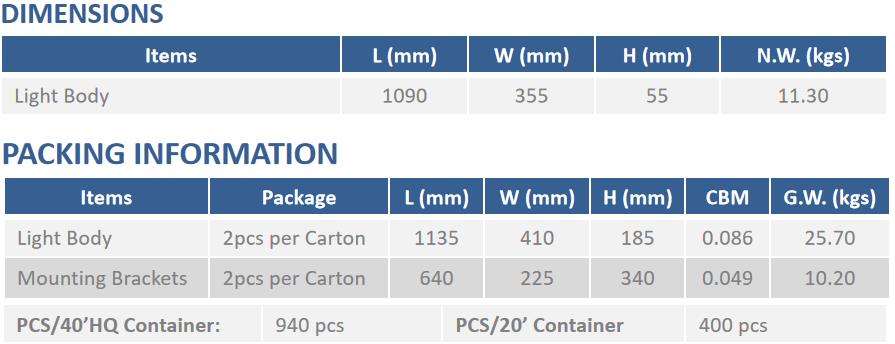

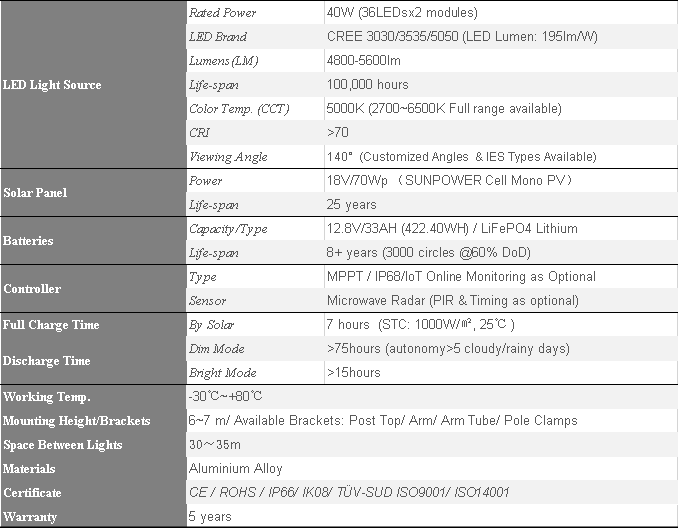

TECHNICAL SPECIFICATIONS

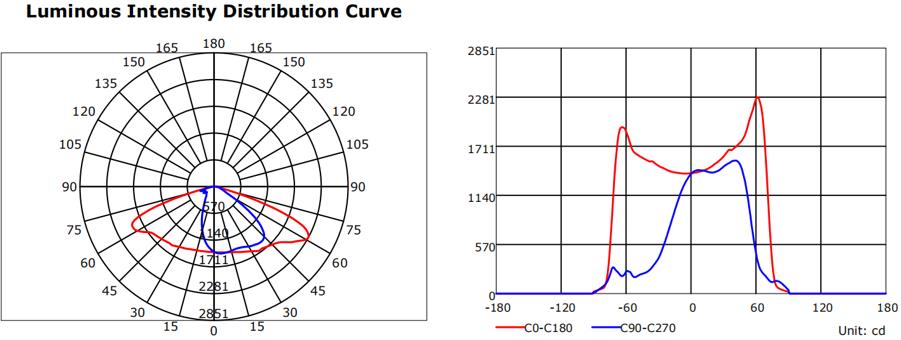

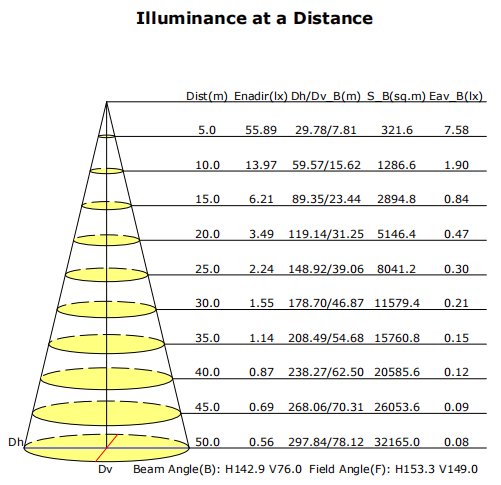

DISTRIBUTIONS & IES TYPE

DIALUX SIMULATION REPORT

Street Profile: ( Tarmac: R3, q0: 0.070)
Pole Height :7m ; Road Width: 10m;  Pole Distance :30m; Lanes: 3;

Luminaire Arrangements

Valuation Field Roadway  / Isolines (E)
