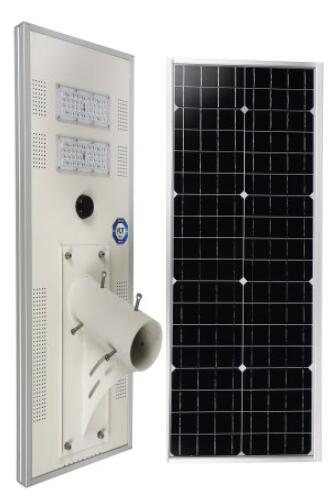

50W Integrated Solar Street Light

Type: Solar
Power: 50W
Light Source: PHILIPS 3030 195lm/W
Lumen: 4500lm-5000lm
Color temperature: 5000K （2700~6500K available)
Light Body Material: Aluminum Alloy

Detail >

FEATURES & ADVANTAGES

  • 5,000 LM max lamp lumen high brightness
  • 100,000+ Hours long LED lifespan, with professional heat dissipation design
  • 25 Years long product lifespan
  • 3,000+ Cycles life LiFePO4 batteries with inbuilt Micro-BMS technologies
  • 99.9% MPPT solar charge efficiency
  • IP68 rated controller vs. IP66 rated electrical compartment
  • 5+ Days cloudy/rainy days autonomy
  • IES Type 1~5 with professional optical designs available to match different project requirements

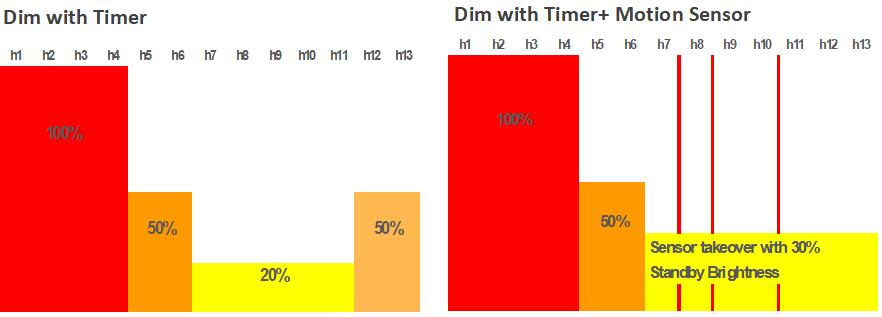

  • Flexible & Customized Working Modes with timer and motion sensor by programming
  • IoT Control and online remote monitoring as optional via ZigBee or LoRaWAN

TECHNICAL SPECIFICATIONS

BRONZE Series MODEL NO. ISSL-BRZ-50W
LED Light Source Rated Power 12V/ 50W  (36LEDsx2 modules)
LED Brand PHILIPS 3030 (LED Lumen: 195lm/W)
Lumens(LM) 4500-5000lm
Life-span 100,000 hours
Viewing Angle 140°  (Customized Angles  & IES Types Available)
Solar Panel Power 18V/60Wp （Monocrystalline PV）
Life-span 25 years
Batteries Capacity/Type 12.8V/24AH (307.20WH) / LiFePO4 Lithium
Life-span 8+ years (3000 circles @60% DoD)
Controller Type MPPT / IP68/IoT Online Monitoring as Optional

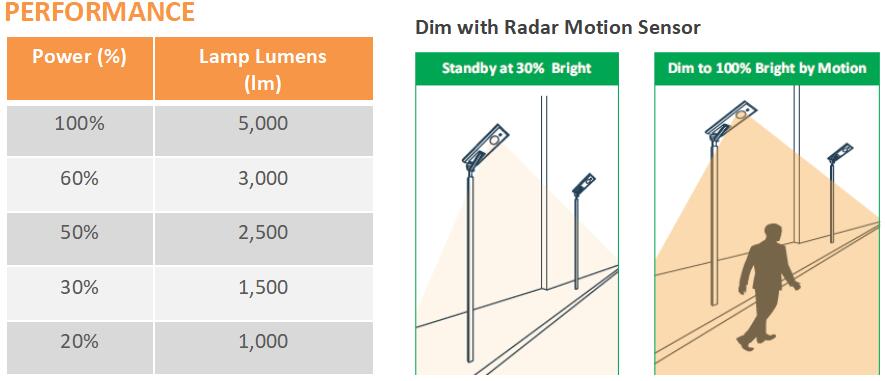

Sensor Microwave Radar (PIR & Timing as optional)
Full Charge Time By Solar 5 hours (STC: 1000W/㎡, 25℃ )
Discharge Time Dim Mode >60hours
Bright Mode >12 hours
Working Temp. -30℃~+80℃
Color Temp. Daylight White 5000K （full color temp. range 2700~6500K available)
Mounting Height/Brackets 6～7 m/ Available Brackets: Post Top/ Arm/ Arm Tube/ Pole Clamps
Space Between Lights 25～30m
Materials aluminium alloy
Certificate CE / ROHS / IP66/TUV-SUD ISO9001/ ISO14001
Warranty 3 years

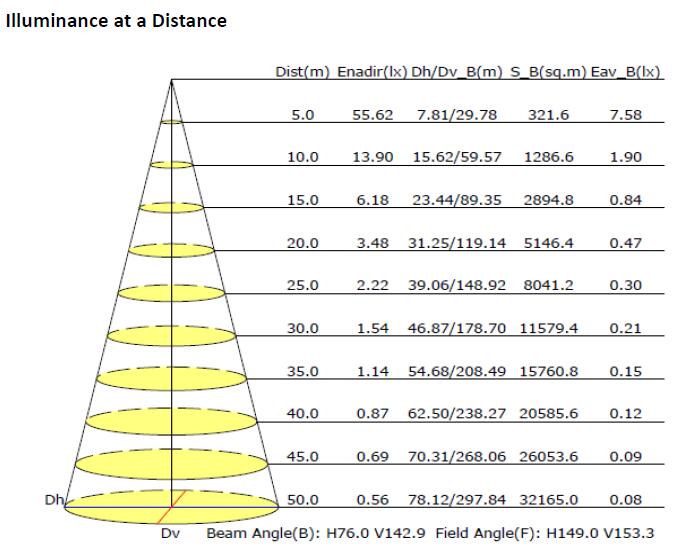

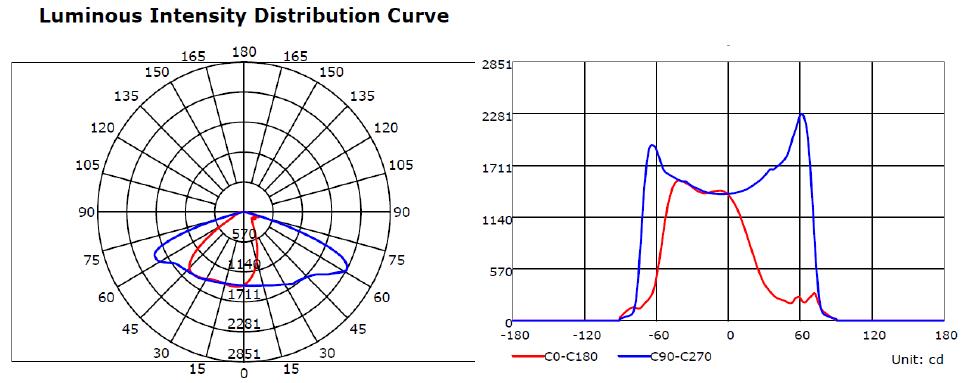

DISTRIBUTIONS & IES TYPE

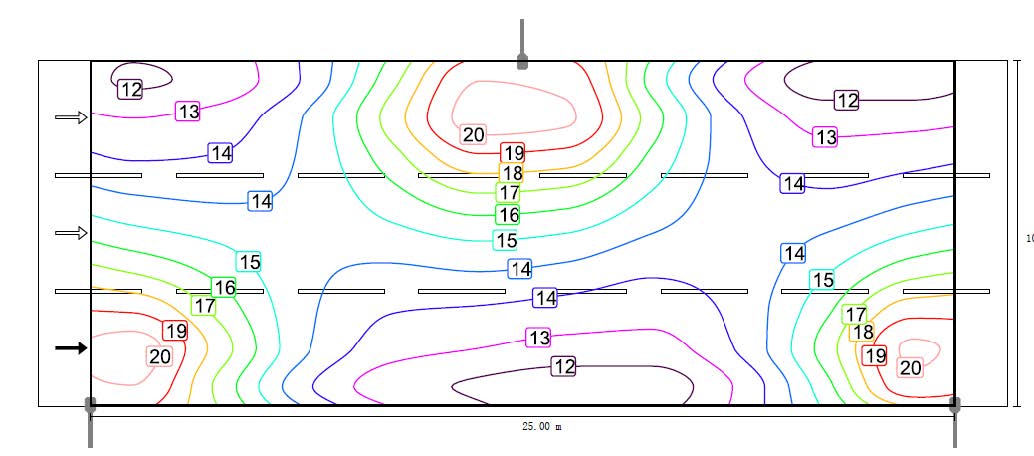

DIALUX SIMULATION REPORT (Valuation Field Roadway)

Street Profile: ( Tarmac: R3, q0: 0.070)
Pole Height :7m ; Pole Distance :25m; Road Width: 10m; Lanes: 3;
