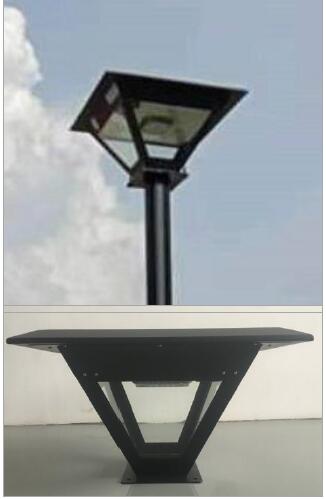

LED SOLAR GARDEN/ GATEPOST LIGHTS
Using the latest Solar and LED technologies, our powerful LED Solar Garden light offers exceptional lighting with substantial energy savings, reduced maintenance costs and carbon emissions.
Ideal for lining pathways and accenting garden features, once installed the lights charge up during the day and light up automatically at night for all night over or your required hours.
Easy fixing points to connect to your existing column make it easier than ever to update your current lighting, or if needed can be supplied with own column.
KEY FEATURES
• High Brightness, Lamp Lumen up to 1800 LM
• PIR/ Radar sensor allows for dimming and timing
• In-built Timer for max 5 sections timer
• Market leading efficiency
• 25 years lifespan, peace of mind and unrivaled quality
• Can be installed to areas with no electrical cabling
• Built in photocell activates light at dusk and stays on until dawn
• Autonomy for 5+ continual rainy/cloudy days
TECHNICAL SPECIFICATIONS
MAIN APPLICATIONS
GATE POST Series
MODEL NO. SGL-1500
Solar Panel
Power
18V/20Wp (Monocrystalline PV)
Life-span
25 years
Batteries
Capacity/Type
12.8V/13.2AH (168.96WH) / LiFePO4 Lithium
Life-span
8+ years (3,000 circles @ 60% DoD)
Controller
Type
MPPT / Waterproof class: IP68
Sensor
100%*2hrs+80%*2hrs+30% till dawn
LED Light Source
Rated Power
12V/ 15W
LED Brand
PHILIPS 3030 (LED Lumen: 195lm/W)
Lumens(LM)
1500-1800lm
Life-span
100,000 hours
Discharge Time
Dim Mode
> 80 hours
Bright Mode
> 16 hours
Working Temp.
-30℃~+80℃
Color Temp.
Daylight White 5000K (full color temp. range 2700~6500K available)
Mounting Height/Brackets
2~4 m
Materials
Steel+Powder Coating
Warranty
5 years
Packing & Weight
Light Body Size:
450*450*300mm
Net Weight
9.5kg
Carton Type
Customary Carton/ OEM Acceptable
Carton size
490*490*320mm (0.077CBM)
Qty/ctn
1 lights in 1 CTN
GW. per Carton
11kg
PCS per Container
20' GP
350
40' HQ
830

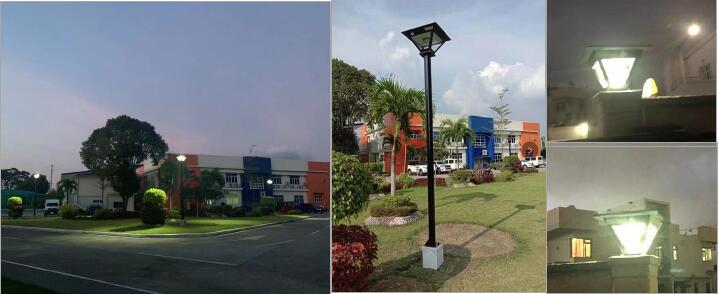

• Resort, villa and house garden
• Gate post
• Security areas
• Park Lot
• Public spaces
• Exterior retail, commercial, hotel and leisure environments
