SGL-3000

1.High Brightness, Lamp Lumen up to 3600 LM 2.PIR/ Radar sensor allows for dimming and timing 3.In-built Timer for max 5 sections timer 4.Market leading efficiency 5.25 years lifespan, peace of mind and unrivaled quality

Detail >

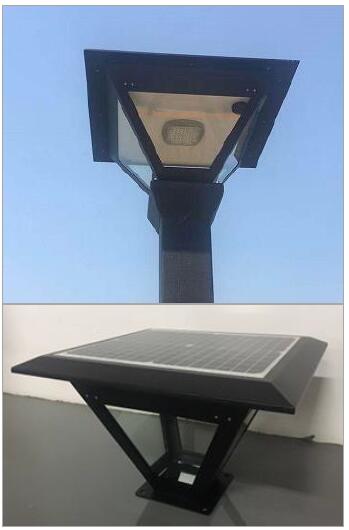

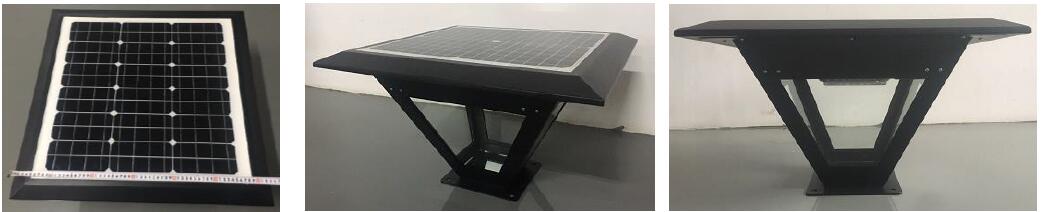

LED SOLAR GARDEN/ GATEPOST LIGHTS

Using the latest Solar and LED technologies, our powerful LED Solar Garden light offers exceptional lighting with substantial energy savings, reduced maintenance costs and carbon emissions.
Ideal for lining pathways and accenting garden features, once installed the lights charge up during the day and light up automatically at night for all night over or your required hours.
Easy fixing points to connect to your existing column make it easier than ever to update your current lighting, or if needed can be supplied with own column.


KEY FEATURES

• High Brightness, Lamp Lumen up to 3600 LM
• PIR/ Radar sensor allows for dimming and timing
• In-built Timer for max 5 sections timer
• Market leading efficiency
• 25 years lifespan, peace of mind and unrivaled quality
• Can be installed to areas with no electrical cabling
• Built in photocell activates light at dusk and stays on until dawn
• Autonomy for 5+ continual rainy/cloudy days

TECHNICAL SPECIFICATIONS

GATE POST Series MODEL NO. SGL-3000
Solar Panel Power 18V/45Wp Monocrystalline PV
Life-span 25 years
Batteries Capacity/Type 12.8V/23.1AH (295.68WH) / LiFePO4 Lithium
Life-span 8+ years (3,000 circles @ 60% DoD)
Controller Type MPPT / Waterproof class: IP68
Sensor Microwave Radar (PIR & Timing as optional)
LED Light Source Rated Power 12V/ 30W
LED Brand PHILIPS 3030 (LED Lumen: 195lm/W)
Lumens(LM) 3000-3600lm
Life-span 100,000 hours
Discharge Time Dim Mode > 75 hours
Bright Mode > 15 hours
Working Temp. -30~+80
Color Temp. Daylight White 5000K full color temp. range 2700~6500K available)
Mounting Height/Brackets 24 m
Materials Steel+Powder Coating
Warranty 5 years
Packing & Weight Light Body Size: 630*630*330mm
Net Weight 17.0kg
Carton Type Customary Carton/ OEM Acceptable
Carton size 680*680*350mm (0.162CBM)
Qty/ctn 1 lights in 1 CTN
GW. per Carton 18.5kg
PCS per Container 20' GP 170
40' HQ 400

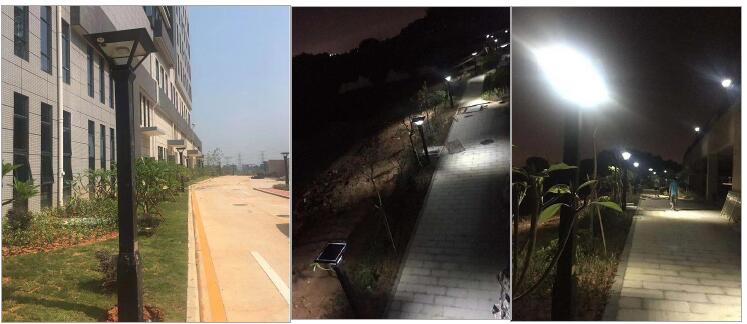

MAIN APPLICATIONS
• Resort, villa and house garden
• Gate post
• Security areas
• Park Lot
• Public spaces
• Exterior retail, commercial, hotel and leisure environments
